Product Summary

The bgy85 is a CATV amplifier module. The bgy85 operates over a frequency range of 40 to 450MHz at a voltage supply of +24V (DC) . The bgy85 is intended for use as an input amplifier module and bgy85a as an output amplifier module.

Parametrics

bgy85 absolute maximum ratings: (1) RF input voltage Vi: 65dBmV; (2) storage temperature Tstg: -40 to +100°C; (3) mounting base operating temperature Tmb: -20 to +100°C.

Features

bgy85 features: (1) Excellent linearity; (2) Extremely low noise; (3) Silicon nitride passivation; (4) Rugged construction; (5) Optimal reliability ensured by TiPtAu metallized crystals.

Diagrams

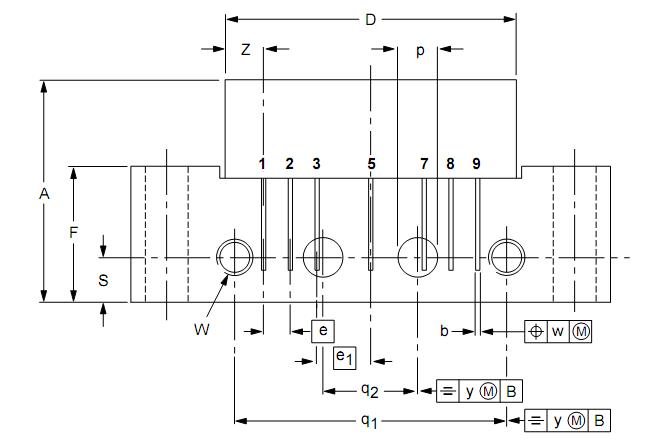

bgy85 dimension
