Product Summary

The bgy588n is a CATV amplifier module. The bgy588n is in a SOT115J packag operating with a voltage supply of 24V (DC) . Applications of the bgy588n include: CATV systems in the 40 to 550MHz frequency range and intended for use as a line-extender.

Parametrics

bgy588n absolute maximum ratings: (1) RF input voltage Vi: 55dBmV; (2) storage temperature tstg: -40 to +100°C; (3) mounting base operating temperature Tmb: -20 to +100°C.

Features

bgy588n features: (1) Excellent linearity; (2) Extremely low noise; (3) Silicon nitride passivation; (4) Rugged construction; (5) TiPtAu metallized crystals ensure optimal reliability.

Diagrams

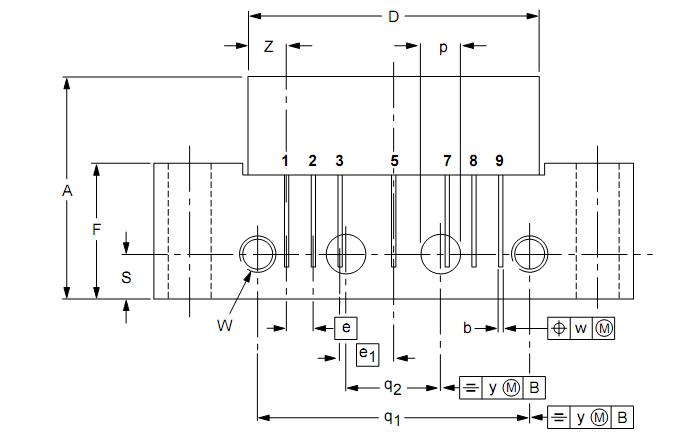

bgy588n dimension
