Product Summary

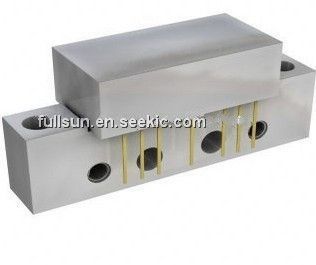

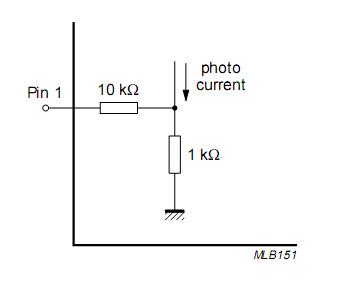

The bgy67bo is a ptical receiver module. The bgy67bo is in a SOT115U package operating at a voltage supply of 24V (DC) . The bgy67bo contains a monomode optical input suitable for wave lengths from 1290 to 1600nm, a terminal to monitor the pin diode current and an electrical output with an impedance of 75Ω. Applications of the bgy67bo include: Reverse receiver amplifier in two-way CATV systems in the 5 to 400MHz frequency range.
Parametrics
bgy67bo absolute maximum ratings: (1) frequency range f: 5 to 400MHz; (2) storage temperature Tstg: -40 to +85°C; (3) operating mounting base temperature Tmb: -20 to +85°C; (4) optical input power Pin: 5mW (continuous) ; (5) ESD sensitivity ESD: 500V (human body model; R=1.5kΩ, c=100pF) .
Features
bgy67bo features: (1) Excellent linearity; (2) Extremely low noise; (3) Silicon nitride passivation; (4) Rugged construction; (5) Gold metallization ensures excellent reliability.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 BGY67BO |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
BGY67BO4M |
Other |
|
Data Sheet |
Negotiable |
|
||||
