Product Summary
The SA616DK01-T is a low-voltage high performance monolithic FM IF system incorporating a mixer/oscillator, two limiting intermediate frequency amplifiers, quadrature detector, logarithmic received signal strength indicator (RSSI), voltage regulator and audio and RSSI op amps. The SA616DK01-T is available in 20-lead SSOP (shrink small outline package). The SA616DK01-T is designed for portable communication applications and will function down to 2.7V. The audio and RSSI outputs have amplifiers with
access to the feedback path. This enables the designer to adjust the output levels or add filtering. Applications of the SA616DK01-T include Portable cellular radio FM IF, Cordless phones, Wireless systems, RF level meter, Spectrum analyzer, Instrumentation, FSK and ASK data receivers, Log amps, Portable high performance communication receiver and Single conversion VHF receivers.
Parametrics
SA616DK01-T absolute maximum ratings: (1)Single supply voltage: 7 V; (2)Storage temperature range: -65 to +150℃; (3)Operating ambient temperature range: -40 to +85℃; (4)Thermal impedance DK package: 117℃/W.
Features
SA616DK01-T features: (1)Low power consumption: 3.5mA typical at 3V; (2)Mixer input to >150MHz; (3)Mixer conversion power gain of 17dB at 45MHz; (4)XTAL oscillator effective to 150MHz (L.C. oscillator or external oscillator can be used at higher frequencies); (5)102dB of IF Amp/Limiter gain; (6)2MHz IF amp/limiter small signal bandwidth; (7)Temperature compensated logarithmic Received Signal Strength Indicator (RSSI) with a 80dB dynamic range; (8)Low external component count; suitable for crystal/ceramic/LC filters; (9)Excellent sensitivity: 0.31mV into 50W matching network for 12dB SINAD (Signal to Noise and Distortion ratio) for 1kHz tone with RF at 45MHz and IF at 455kHz; (10)SA616 meets cellular radio specifications; (11)Audio output internal op amp; (12)RSSI output internal op amp; (13)Internal op amps with rail-to-rail outputs

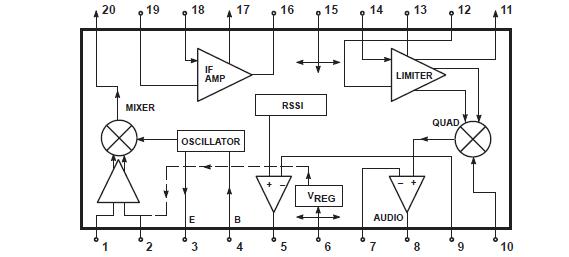

Diagrams
