Product Summary

The FLI2310-LF is a Digital Video Format Converter for Flat Panel TV and digital projectors. The FLI2310-LF uses patented deinterlacing and post processing algorithms from Faroudja coupled with highly flexible scaling, a wide variety of aspect ratio conversions, and other special video enhancing features to produce the highest quality image. The applications of the FLI2310-LF include LCD TV, PDP TV, LCOS/DLP Projection TV, and Digital Projectors.

Parametrics

FLI2310-LF absolute maximum ratings: (1)2-Wire control interface; (2)0.18u technology, 1.8V/3.3V operation; (3)208 pin PQFP package; (4)Input color manipulation matrix supports all color spaces: RGB, YPrPb, 4:4:4 YCrCb, 4:2:2 YCr/Cb, ITU-R BT656, ITU-R BT601; (5)Output supports digital RGB, YPrPb, 4:4:4 YCrCb, 4:2:2 YCr/Cb.

Features

FLI2310-LF features: (1)Input all industry standard and non-standard video resolutions, including 480i (NTSC), 576i (PAL/SECAM), 480p, 720p, 1080i, and; (2)VGA to SXGA; (3)Digital input, 8-bit Y/Cr/Cb (ITU-R BT656), 8-bit Y/Pr/Pb, 16-bit Y Cr/Cb (ITU-R BT601), 24-bit RGB, YCrCb, YPrPb; (4)Input pixel rate up to 75 MHz maximum; (5)Output resolutions include 480p, 576i, 576p, 720p, 1080i, 1080p, and VGA to SXGA; (6)Interlaced or Progressive output; (7)Output is digital 24-bit RGB, YCrCb, YPrPb (4:4:4), or 16/20-bit Y Cr/Cb (4:2:2); (8)Output pixel rate up to 150 MHz maximum.

Diagrams

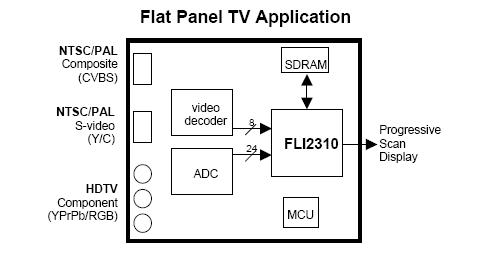

FLI2310-LF block diagram
