Product Summary

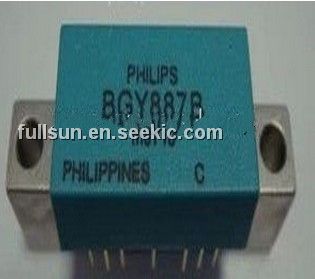

The bgy887bo is an optical receiver module. The bgy887bo is in a SOT115R package operating at a voltage supply of 24V (DC) . The bgy887bo contains a monomode optical input suitable for wavelengths from 1290to1600nm, a terminal to monitor the pin diode current and an electrical output with an impedance of 75Ω. Applications of the bgy887bo include: CATV systems operating over a frequency range of 40 to 860MHz.

Parametrics

bgy887bo absolute maximum ratings: (1) frequency range f: 40 to 860MHz; (2) storage temperature range Tstg: -40 to +85°C; (3) operating mounting-base temperature Tmb: -25 to 85°C; (4) optical input power Pin: 5mW (continuous) ; (5) ESD sensitivity ESD: 500V (human body model; R=1.5kΩ, C=100pF) .

Features

bgy887bo features: (1) Excellent linearity; (2) Extremely low noise; (3) Excellent flatness; (4) Standard CATV outline; (5) Rugged construction; (6) Gold metallization ensures excellent reliability; (7) FC/APC connector (JDS version) .

Diagrams

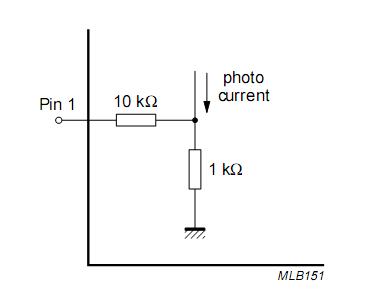

bgy887bo circuit
