Product Summary

The ALS-PT204-6C/L177 is a 3mm DIP Ambient Light Sensor. The ALS-PT204-6C/L177 is consisting of a phototransistor in 3mm lamp. EVERLIGHT ALS series products are good effective solution to the power saving of display backlighting of mobile appliances, such as the mobile phones, NB and PDAs. Due to the high rejection ratio of infrared radiation, the spectral response of the ambient light sensor is close to human eyes. The applications of the ALS-PT204-6C/L177 are mobile phones, PDAs, TFT LCD monitor for Notebook computer, TFT LCD TV, plasma TV, video camera, digital camera, toys, residential and commercial management, Automatic contrast enhancement for electronic signboard, Ambient light monitoring device for daylight and artificial light, Street light, CCD/CCTV.

Parametrics

ALS-PT204-6C/L177 absolute maximum ratings: (1)Vcc: -0.5~6.0 V; (2)Operating Temperature Range Topr: -40 ~ +85 °C; (3)Storage Temperature Range Tstg: -40 ~ +100 °C; (4)Soldering Temperature Range [Note1] Tsol: 260 ± 10 °C.

Features

ALS-PT204-6C/L177 features: (1)Close responsively to the human eye spectrum; (2)Light to Current, analog output; (3)Good output linearity across wide illumination range; (4)Low sensitivity variation across various light sources; (5)Operating temperature performance, -40 to 85°C; (6)Wide supply voltage range, 2.5V to 5.5V; (7)Size : 3.0mm lamp; (8)RoHS compliant and Pb Free package.

Diagrams

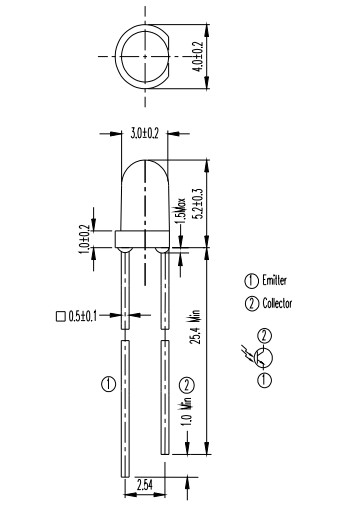

ALS-PT204-6C/L177 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ALS-PT204-6C/L177
ALS-PT204-6C/L177
Everlight
Ambient Light Sensors Ambient Light Sensor
Data Sheet
0-1: $0.24
1-50: $0.19
50-100: $0.14
100-500: $0.10
