Product Summary

The ITR8307 is a light reflection switch which includes a GaAs IR-LED transmitter and a NPN photo-transistor with a high photosensitive receiver for short distance, operating in the infrared range. Both components are mounted side- by- side in a plastic package. The applications of the ITR8307 are Camera, VCR, Floppy disk driver, Cassette type recorder, Various microcomputer control equipment.

Parametrics

ITR8307 absolute maximum ratings: (1)Power Dissipation at(or below)25℃: 75 mW; (2)Reverse Voltage VR: 5 V; (3)Forward Current IF: 50 mA; (4)Peak Forward Current: 1 A; (5)Collector Power Dissipation PC: 75 mW; (6)Collector Current IC: 50 mA; (7)Collector-Emitter Voltage B VCEO: 30 V; (8)Emitter-Collector Voltage B VECO: 5 V; (9)Operating Temperature Topr: -25~+85 ℃; (10)Storage Temperature Tstg: -40~+85 ℃; (11)Lead Soldering Temperature (*2)Tsol: 260 ℃.

Features

ITR8307 features: (1)Fast response time; (2)High sensitivity; (3)Cut-Off visible wavelength; (4)Thin; (5)Compact; (6)Pb free.

Diagrams

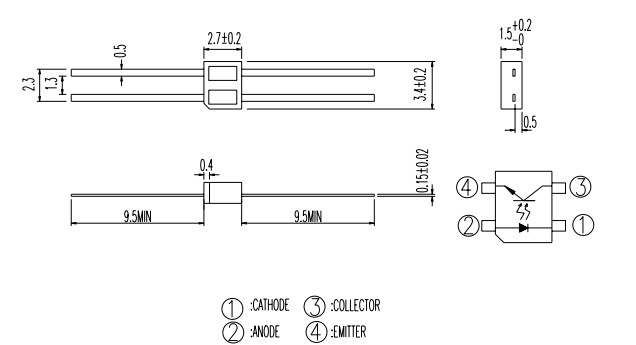

ITR8307 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ITR8307
ITR8307

OPTO INTERRUPTER
Data Sheet
0-3000: $0.12
ITR8307/F43
ITR8307/F43
Everlight
Transistor Output Optocouplers Opto Interrupter
Data Sheet
0-1450: $0.19
1450-2000: $0.17
2000-5000: $0.15
5000-10000: $0.14
ITR8307/L24/TR8
ITR8307/L24/TR8
Everlight
Transistor Output Optocouplers Opto Interrupter
Data Sheet
0-1: $0.47
1-50: $0.44
50-100: $0.36
100-500: $0.31
500-1000: $0.23
ITR8307/L24/F43
ITR8307/L24/F43
Everlight
Transistor Output Optocouplers Opto Interrupter
Data Sheet
0-1450: $0.20
1450-2000: $0.18
2000-5000: $0.16
5000-10000: $0.14
ITR8307/L24
ITR8307/L24
Everlight
Transistor Output Optocouplers Opto Interrupter
Data Sheet
0-1400: $0.20
1400-2000: $0.18
2000-5000: $0.16
5000-10000: $0.14
ITR8307/TR8
ITR8307/TR8

OPTO INTERRUPTER
Data Sheet
0-1000: $0.15
