Product Summary

The IRM2636 is a miniaturized receiver that is designed for the infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. It can be used in (1)Light detecting portion of remote control; (2)AV instruments such as Audio, TV, VCR, CD, MD, etc.; (3)Home appliances such as Air-conditioner, Fan , etc.; (4)The other equipments with wireless remote control.; (5)CATV set top boxes; (6)Multi-media Equipment.

Parametrics

IRM2636 absolute maximum ratings: (1)Supply Voltage: 0 to 6 V; (2)Storage temperature range: -40 to +85 °C; (3)Soldering temperature:260 °C; (4)Operating temperature: -25 to +85°C.

Features

IRM2636 features: (1)High protection ability against EMI; (2)Circular lens to improve the receive characteristic; (3)Line-up for various center carrier frequencies; (4)Low voltage and low power consumption; (5)High immunity against ambient light; (6)Photodiode with integrated circuit; (7)TTL and CMOS compatibility; (8)Long reception distance; (9)High sensitivity; (10)Suitable burst length ≥10 cycles/burst; (11)Pb free; (12)The product itself will remain within RoHS compliant version.

Diagrams

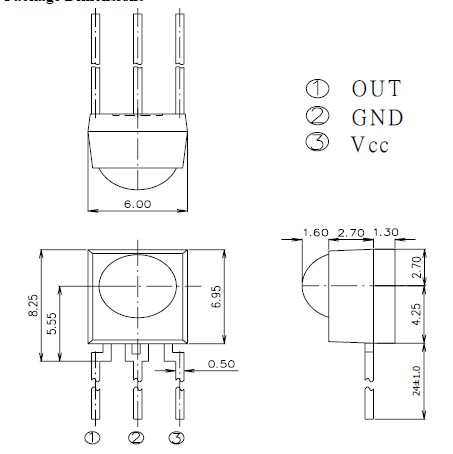

IRM2636 dimension figure
