Product Summary

The IR333-F-A is a high intensity diode, molded in a blue transparent plastic package. The device is spectrally matched with phototransistor, photodiode and infrared receiver module. It can be used in (1)Free air transmission system; (2)Optoelectronic switch; (3)Floppy disk drive; (4)Infrared applied system; (5)Smoke detector.

Parametrics

IR333-F-A absolute maximum ratings: (1)Continuous forward current: 50 mA; (2)Reverse Voltage: 5V; (3)Power dissipation at(or below) 25℃ free air temperature: 100 mW; (4)Peak forward current :1.0 A; (5)Storage temperature range: -40 to +85 °C; (6)Soldering temperature:260 °C; (7)Operating temperature: -40 to +85°C.

Features

IR333-F-A features: (1)High radiant intensity; (2)Peak wavelength=940nm; (3)View angle 20°; (4)High reliability; (5)2.54mm Lead spacing.

Diagrams

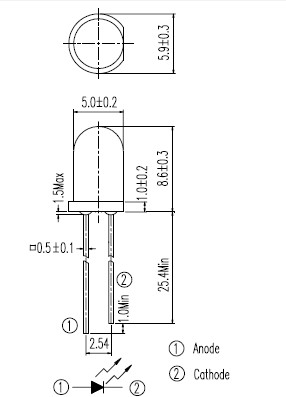

IR333-F-A dimension figure
