Product Summary

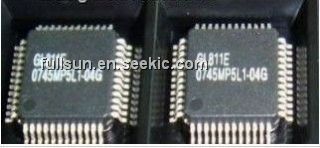

The GL811E is a highly-compatible, low cost USB 2.0 to ATA / ATAPI bridge controller, which integrates Genesys Logic own design high speed UTMI (USB 2.0 Transceiver Macrocell Interface) transceiver. The GL811E uses 12MHz crystal and slew-rate controlled pads to reduce the EMI issue. With 48-pin LQFP (9mmX9mm) package, the GL811E is the best cost/ performance solution to fit different situations in the USB 2.0 high speed storage class applications such as Hard Disk, CD-ROM, CD-R / RW and DVD-ROM.
Parametrics
GL811E absolute maximum ratings: (1) DC supply voltage Vcc: +3.0V to +3.6V; (2) DC input voltage VI: -0.3V to Vcc +0.3V; (3) DC input voltage range for I/O, VI/O: -0.3V to Vcc +0.3V; (4) DC input voltage for USB D+/D- pins, VAI/O: -0.3V to Vcc +0.3V; (5) Static discharge voltage VESD: 4000V; (6) Ambient Temperature TA: 0 to 100°C.
Features
GL811E features: (1) Complies with Universal Serial Bus specification rev. 2.0; (2) Complies with ATA/ATAPI-6 specification rev 1.0; 93) Complies with USB Storage Class specification ver.1.0. (Bulk only protocol) ; (4) Operating system supported: Win XP / 2000 / Me / 98 / 98SE; Mac OS 9.X / X; (5) Integrated USB 2.0 Transceiver Macrocell Interface (UTMI) transceiver and Serial Interface Engine (SIE) ; (6) USB 2.0 certified (TestID=40380268) ; (7) Supports 4 endpoints: Control (0) / Bulk Read (1) / Bulk Write (2) / Interrupt (3) ; (8) 64 / 512 bytes Data Payload for full / high speed Bulk Endpoint; (9) Supports 16-bit Multiword DMA mode and Ultra DMA mode interface (Ultra 33 / 66) ; (10) Embedded 7.5 MIPS RISC CPU; (11) ROM size: 4k words; RAM size: 128 bytes; (12) Supports 2 GPIO (GPIO5 & 6) for programmable AP (only for 64 pin package) ; (13) Supports device power control for power on/off when running suspend mode (only for 64 pin package) ; (14) Supports 32 bit and 48 bit LBA hard disk; (15) Provides LED indicator for Full Speed and High Speed (only for 64 pin package) ; (16) 12 MHz external clock to provide better EMI; (17) 3.3V power input; 5V tolerance pad for IDE interface; (18) Supports Wakeup ability; (19) Available in 48-pin LQFP/TQFP and 64-pin LQFP/TQFP package.
