Product Summary

The dp8573an is a real time clock. The dp8573an is intended for use in microprocessor based systems where information is required for multi-tasking, data logging or general time of day/date information. The dp8573an is implemented in low voltage silicon gate microCMOS technology to provide low standby power in battery back-up environments.

Parametrics

dp8573an absolute maximum ratings: (1) Supply Voltage (VCC) : -0.5 to +7V; (2) DC Input Voltage (VIN) : -0.5 to Vcc +0.5V; (3) DC Output Voltage (VOUT) : -0.5 to Vcc +0.5V; (4) Storage Temperature Range: -65 to +150°C; (5) Power Dissipation (PD): 500mW; (6) Lead Temperature (Soldering, 10 sec.) : 260°C.

Features

dp8573an features: (1) Full function real time clock/calendar: 12/24 hour mode timekeeping, day of week counter, parallel resonant oscillator; (2) Power fail features; (3) On-chip interrupt structure.

Diagrams

dp8573an block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

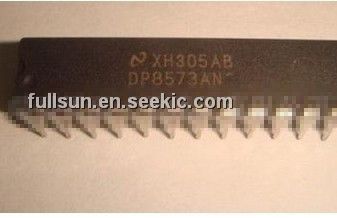

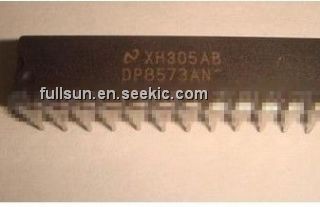

DP8573AN
DP8573AN

IC RTC ALARM 24DIP
Data Sheet
Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DP8521AV
DP8521AV
Other

Data Sheet
Negotiable
DP8570A
DP8570A
Other

Data Sheet
Negotiable
DP8570AV
DP8570AV
National Semiconductor (TI)
Real Time Clock
Data Sheet
0-1: $19.04
1-25: $17.14
25-100: $15.71
100-250: $13.80
DP8570AV/NOPB
DP8570AV/NOPB
National Semiconductor (TI)
Real Time Clock
Data Sheet
0-1: $19.04
1-25: $13.06
25-100: $12.60
100-250: $11.60
DP8570AVX
DP8570AVX
National Semiconductor (TI)
Real Time Clock
Data Sheet
0-750: $13.09
DP8570AVX/NOPB
DP8570AVX/NOPB
National Semiconductor (TI)
Real Time Clock
Data Sheet
0-418: $13.81
418-500: $10.21
500-750: $10.21
