Product Summary

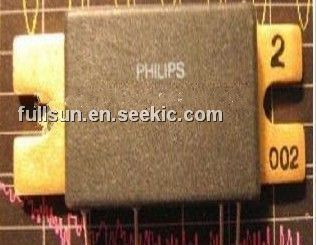

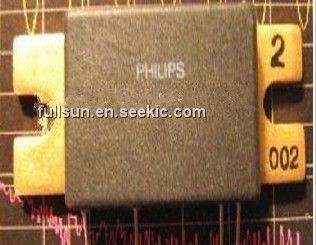

The bgy1816s is a three-stage UHF amplifier module in a SOT501A package with a plastic cap. The bgy1816s consists of three NPN silicon planar transistor dies mounted together with matching and bias circuit components on a metallized ceramic AlN substrate. Application of the bgy1816s includes: Base station transmitting equipment operating in the 1805 to 1880MHz frequency band.
Parametrics
bgy1816s absolute maximum ratings: (1) frequency f: 1805 to 1880MHz; (2) supply current IS1: 80mA; (3) supply current IS2: 430mA (PD< -60dBm) ; (4) load power PL: 16W (PD<20mW) ; (5) power gain Gp: 29dB; (6) second harmonic H2: -35dBc; (7) second harmonic H3: -40dBc; (8) AM bandwidth B: 2MHz (corner frequency=3dB; Pcarrier=16W; modulation=20%) .
Features
bgy1816s features: (1) 26V nominal supply voltage; (2) 16W output power in to a load of 50Ω with an RF drive power of ≤20mW.

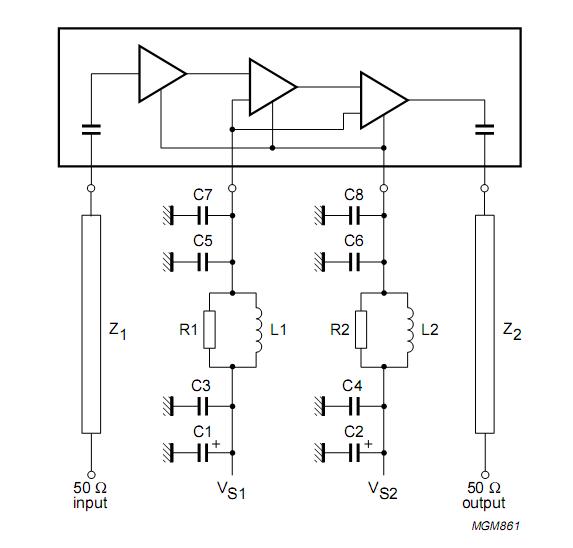

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BGY1816S |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
