Product Summary
The bgy86 is a CATV amplifier module. The bgy86 operates over a frequency range of 40to450Mhz at a voltage supply of 24V (DC) . The BGY86 is intended for use as a pre-amplifier.
Parametrics
bgy86 absolute maximum ratings: (1) power gain Gp: 21.5 to 22.5dB (f=50MHz) ; (2) total current consumption (DC) Itot: 180 to 200mA (VB=24V) ; (3) RF input voltage Vi: 65dBmV; (4) storage temperature Tstg: -40 to +100°C; (5) operating mounting base temperature Tmb: -20 to +100°C.
Features
bgy86 features: (1) Excellent linearity; (2) Extremely low noise; (3) Silicon nitride passivation; (4) Rugged construction; (5) TiPtAu metallized crystals ensure optimal reliability.

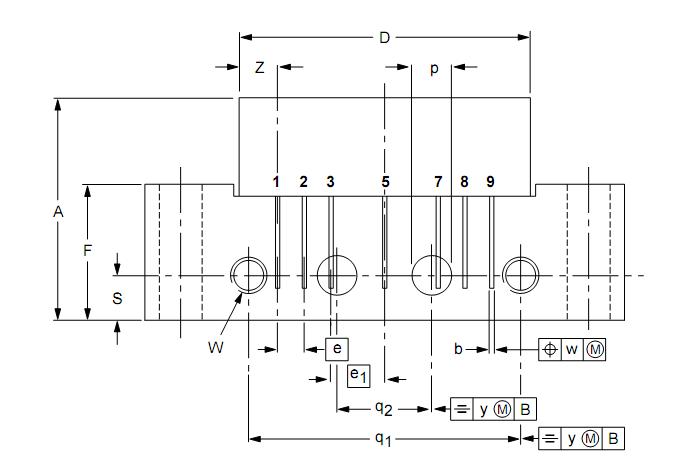

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BGY86 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
BGY80 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BGY81 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BGY82 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BGY835C |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
BGY835C,112 |
NXP Semiconductors |
RF Amplifier RF Amp Module Single GP Amp 860MHz 7-Pin |
Data Sheet |
|
|
||||||||||||
|
BGY84 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
