Product Summary

The bgy685a is a CATV amplifier module. The bgy685a is designed for CATV systems operating over a frequency range of 40 to 600MHz at a voltage supply of 24V (DC) .

Parametrics

bgy685a absolute maximum ratings: (1) RF input voltage Vi: 55dBmV; (2) storage temperature Tstg: -40 to +100°C; (3) operating mounting base temperature Tmb: -20 to +100°C.

Features

bgy685a features: (1) Excellent linearity; (2) Extremely low noise; (3) Silicon nitride passivation; (4) Rugged construction; (5) Gold metallization ensures excellent reliability.

Diagrams

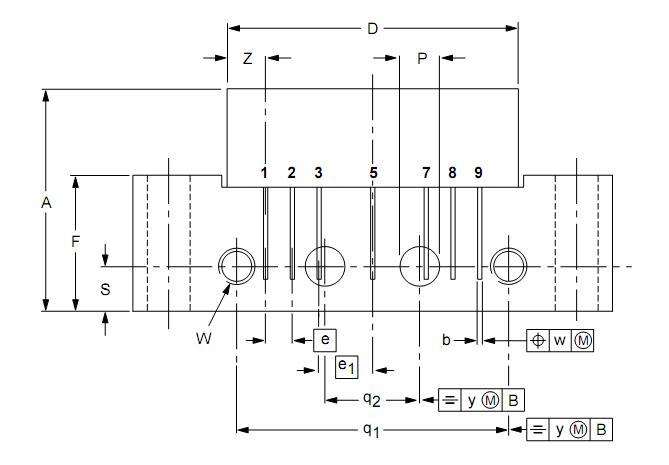

bgy685a dimension
