Product Summary

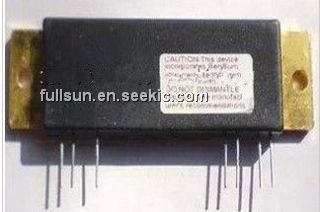

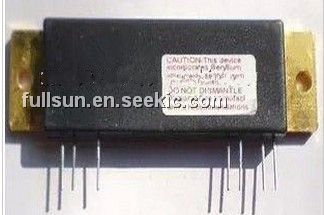

The bgy33 is a VHF power amplifer module. The bgy33 is designed for mobile communications equipments, operating directly from 12V vehicle electrical systems. The bgy33 will produce 18W output into 50Ω load. The bgy33 consists of a two stage RF amplifier using npn transistor chips, togather with lumped-element matching components.

Parametrics

bgy33 absolute maximum ratings: (1) DC supply terminals VB1 and VB2: 15V (max) ; (2) RF input terminal ±VI: 25V (max) ; (3) RF output terminal ±VO: 25V (max) ; (4) Input drive power PD: 200mW (max) ; (5) load power: 30W (max) ; (6) Storage temperature range Tstg: -40 to 100°C.

Features

bgy33 features: (1) load power VB1=VB2=12.5V; RS=RL=50Ω; PD=100mW; (2) IBQ1: 6mA; (3) IBQ2: 13mA; (4) PL: 18W.

Diagrams

bgy33 circuit diagram
