Product Summary

The g6a-474p-48v is a low signal relay.

Parametrics

g6a-474p-48v absolute maximum ratings: (1)Contact resistance: 50 mΩ; (2)Operate (set) time: 7 ms; (3)Release (reset) time: 5 ms; (4)Surge withstand voltage: 1,500 V.

Features

g6a-474p-48v features: (1)High sensitivity -can be driven by digital circuits; (2)Low-profile design allows use in 12.70 mm PC board rack; (3)Surge withstand voltage meets FCC Part 68 regulation; (4)Units can be mounted side by side due to low magnetic leakage; (5)Special models available for low thermoelectromotive force; (6)Unique moving loop (permanent magnet) armature reduces relay size, magnetic interference, and contact bounce time; (7)Single or dual coil winding types available; (8)RoHS Compliant.

Diagrams

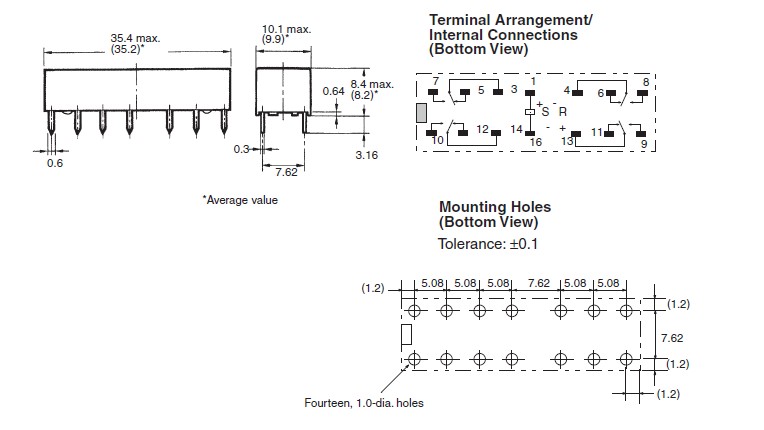

g6a-474p-48v pin connection
