Product Summary

The IR7393C is a high intensity diode, molded in a water clear plastic package. The device is spectrally matched with phototransistor, photodiode and infrared receiver module. It can be used in (1)Free air transmission system; (2)Optoelectronic switch; (3)Infrared remote control units with high power requirement

Parametrics

IR7393C absolute maximum ratings: (1)Continuous forward current: 100 mA; (2)Reverse Voltage: 5V; (3)Power dissipation at(or below) 25℃ free air temperature: 150 mW; (4)Peak forward current :1.0 A; (5)Storage temperature range: -40 to +85 °C; (6)Soldering temperature:260 °C; (7)Operating temperature: -40 to +85°C.

Features

IR7393C features: (1)High reliability; (2)2.54mm lead spacing; (3)Low forward voltage; (4)Good spectral matching to Si photodetector; (5)High radiant intensity; (6)Pb free; (7)The product itself will remain within RoHS compliant version.

Diagrams

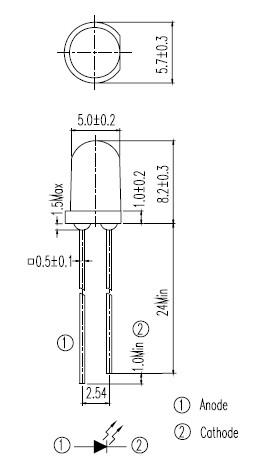

IR7393C dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

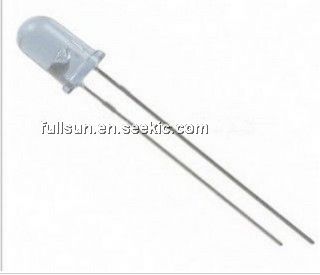

IR7393C
IR7393C
Everlight
Infrared Emitters INFRARED LED 940nm
Data Sheet
0-1: $0.15
1-50: $0.13
50-100: $0.09
100-500: $0.06
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IR7373C
IR7373C
Everlight
Infrared Emitters INFRARED LED 940nm
Data Sheet
0-1: $0.15
1-50: $0.12
50-100: $0.08
100-500: $0.06
IR7393/H59
IR7393/H59
Everlight
Infrared Emitters Infrared LED
Data Sheet
0-1: $0.14
1-50: $0.11
50-100: $0.08
100-500: $0.06
IR7393C
IR7393C
Everlight
Infrared Emitters INFRARED LED 940nm
Data Sheet
0-1: $0.15
1-50: $0.13
50-100: $0.09
100-500: $0.06
