Product Summary
The IR333/H0-A is a high intensity diode, molded in a blue transparent plastic package. The device is spectrally matched with phototransistor, photodiode and infrared receiver module. It can be used in (1)Free air transmission system; (2)Optoelectronic switch; (3)Floppy disk drive; (4)Infrared applied system; (5)Smoke detector.
Parametrics
IR333/H0-A absolute maximum ratings: (1)Continuous forward current: 100 mA; (2)Reverse Voltage: 5V; (3)Power dissipation at(or below) 25℃ free air temperature: 150 mW; (4)Peak forward current :1.0 A; (5)Storage temperature range: -40 to +85 °C; (6)Soldering temperature:260 °C; (7)Operating temperature: -40 to +85°C.
Features
IR333/H0-A features: (1)High reliability; (2)2.54mm lead spacing; (3)Low forward voltage; (4)Good spectral matching to Si photodetector; (5)High radiant intensity; (6)Pb free; (7)The product itself will remain within RoHS compliant version.

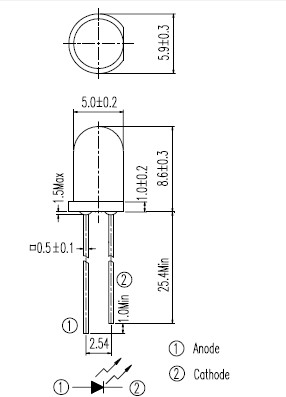

Diagrams
