Product Summary

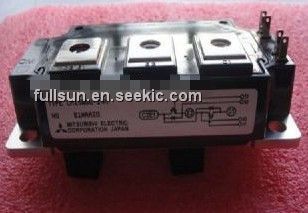

The CM150DU-24H is a Mitsubishi IGBT Module. It is designed for use in switching applications. Each module consists of two IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.The applications of the CM150DU-24H are AC Motor Control, Motion/Servo Control, UPS, Welding Power Supplies.
Parametrics
CM150DU-24H absolute maximum ratings: (1)Junction Temperature Tj: -40℃ to 125℃; (2)Storage Temperature Tstg: -40℃ to 125℃; (3)Collector-Emitter Voltage (G-E SHORT) VCES: 1200V; (4)Gate-Emitter Voltage (C-E SHORT) VGES: ±20V; (5)Collector Current (Tc=25) IC: 150A; (6)Peak Collector Current (Tj≤150℃) ICM: 300A; (7)Maximum Collector Dissipation (Tc=25℃) Pc: 890W; (8)Mounting Torque, M6 Main Terminal: -3.5~4.5 N·m; (9)Mounting Torque, M6 Mounting: -3.5~4.5 N·m; (10)Weight: -400 Grams; (11)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) Viso: 2500 Vrms.
Features
CM150DU-24H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy; (6)Heat Sinking.
