Product Summary

The PGB1010603NR is a lead-free 0603 surface mount esd suppressor. PulseGuard ESD Suppressors help protect sensitive electronic equipment against electrostatic discharge (ESD). They supplement the on-chip protection of integrated circuitry and are best suited for low-voltage, high-speed applications where low capacitance is important. Data ports utilizing such high-speed protocols as USB 2.0, IEEE1394, HDMI and DVI can benefit from this new technology. PulseGuard suppressors use polymer composite materials to suppress fast-rising ESD transients (as specified in IEC 61000-4-2), while adding virtually no capacitance to the circuit. The PGB1010603NR can be applied in HDVT Hardware, Laptop/desktop computer, network hardware, computer peripherals, digital camera, external storage, set-top box, and antenna.

Parametrics

PGB1010603NR absolute maximum ratings: (1)peak voltage: 500V; (2)clamping voltage: 150V; (3)rated voltage:24VDC; (4)capacitance: 0.06pF; (5)leakage current: <1nA.

Features

PGB1010603NR features: (1)RoHS compliant, lead-free and available halogen-free; (2)ultra-low capacitance; (3)low leakage current; (4)fast response time; (5)bi-directional; (6)withstands multiple ESD strikes; (7)compatible with pick-and-place processes; (8)available in 1000, 3000, 5000 and 10000 piece reels.

Diagrams

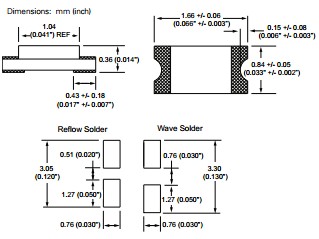

PGB1010603NR pin connection
