Product Summary

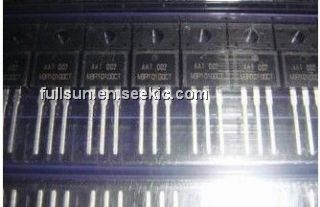

The MBR20200 is a 20 Amp HT power schottky barrier rectifier.

Parametrics

MBR20200 absolute maximum ratings: (1)Operating junction temperature: 150℃; (2)Storage temperature: - 55 ℃ to +175℃; (3)Per diode thermal resistance 2.2℃/W junction to case.

Features

MBR20200 features: (1)High junction temperature capability; (2)Low leakage current and low forward voltage drop; (3)Low power loss and high efficiency.

Diagrams

MBR20200 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MBR20200
MBR20200

Other


Data Sheet

Negotiable
MBR20200CT
MBR20200CT

Taiwan Semiconductor

Schottky (Diodes & Rectifiers) 20 Amp 200 Volt Dual

Data Sheet

0-2000: $0.54
2000-4000: $0.47
4000-6000: $0.43
MBR20200CTG
MBR20200CTG

ON Semiconductor

Schottky (Diodes & Rectifiers) 20A 200V

Data Sheet

0-1: $0.97
1-25: $0.77
25-100: $0.62
100-500: $0.54
MBR20200CTTU
MBR20200CTTU

Fairchild Semiconductor

Schottky (Diodes & Rectifiers) Dual High Voltage

Data Sheet

0-1: $0.72
1-25: $0.63
25-100: $0.58
100-250: $0.50
MBR20200FCT
MBR20200FCT

Other


Data Sheet

Negotiable
