Product Summary

The ITA25B1RL is a bidirectional transiltm array. Applications of it are Differential data transmission lines protection: RS-232, RS-423, RS-422, RS-485. The ITA25B1RL provides high overvoltage protection by clamping action. Its instantaneous response to transient overvoltages makes it particularly suited to protect voltage sensitive devices such as MOS Technology and low voltage supplied IC’s. The ITA25B1RL allies high surge capability against energetic pulses with high voltage performance against ESD

Parametrics

ITA25B1RL absolute maximum ratings: (1)Peak pulse power dissipation (8/20us): Tj initial = Tamb: 300 W; (2)Peak pulse current (8/20μs): Tj initial = Tamb: 40 A; (3)Wire I2t value: 0.6 A2s; (4)Storage temperature range: - 55 to + 150°C; (5)Maximum operating junction temperature: 125°C; (6)Maximum lead temperature for soldering during 10s: 260°C.

Features

ITA25B1RL features: (1)HIGH SURGE CAPABILITY TRANSIL ARRAY IPP = 40 A (8/20μs); (2)PEAK PULSE POWER: 300 W (8/20us); (3)UP TO 5 BIDIRECTIONAL TRANSIL FUNCTIONS; (4)LOW CLAMPING FACTOR (VCL / VBR)AT; (5)HIGH CURRENT LEVEL; (6)LOW LEAKAGE CURRENT; (7)ESD PROTECTION UP TO 15kV.

Diagrams

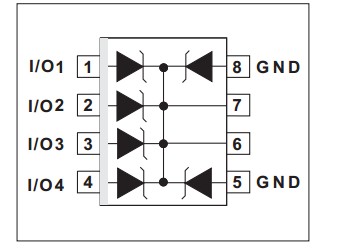

ITA25B1RL pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ITA25B1RL
ITA25B1RL
STMicroelectronics
TVS Diode Arrays 25V 300W Bidirect
Data Sheet
0-1: $1.17
1-25: $0.95
25-100: $0.85
100-250: $0.76
