Product Summary

The 293D107X9016D2T is a solid tantalum surface mount capacitor.

Parametrics

293D107X9016D2T electrical characteristics: (1)Operating temperature: - 55℃ to + 85℃ (to + 125℃ with voltage derating); (2)Capacitance range: 0.10μF to 1000μF; (3)Capacitance tolerance: ± 5 %, ± 10 % , ± 20 %; (4)100 % surge current tested (d and e case codes); (5)Voltage rating: 4 VDC to 63 VDC.

Features

293D107X9016D2T features: (1)Terminations: 100 % matte tin, standard,tin/lead available; (2)Compliant terminations; (3)Molded case available in six case codes; (4)Compatible with “High Volume” automatic pick and place equipment; (5)Optical character recognition qualified; (6)Meets IEC specification QC300801/US0001 and EIA535BAAC mechanical and performance requirements; (7)Compliant to RoHS Directive 2002/95/EC.

Diagrams

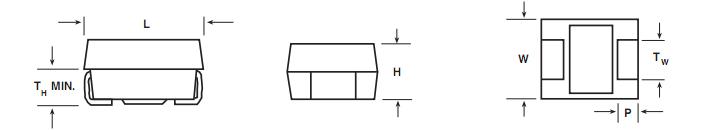

293D107X9016D2T pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
293D107X9016D2T
293D107X9016D2T
Vishay/Sprague
Tantalum Capacitors - Solid SMD 100uF 16volts 10% D case Molded
Data Sheet
0-230: $0.37
230-500: $0.34
500-1000: $0.31
1000-2000: $0.28
293D107X9016D2TE3
293D107X9016D2TE3
Vishay/Sprague
Tantalum Capacitors - Solid SMD 100uF 16volts 10% D case Molded
Data Sheet
0-1: $0.97
1-10: $0.79
10-50: $0.72
50-100: $0.64
